- Mechanical structure capable of processing aluminum profiles at high speed and with high quality
- Automatically opens espagnolette holes, locks, barrel slots, handle holes, and water drainage channels in aluminum profiles.
- Pneumatic clamping on the front and top surfaces for profile fixing
- 17" touchscreen
- User-friendly Kaban interface
- Mitsubishi PLC control system
- Cutting fluid spray system
- Automatically opens espagnolette holes, locks, barrel slots, handle holes, and water drainage channels in aluminum profiles.
- Pneumatic clamping on the front and top surfaces for profile fixing
- 17" touchscreen
- User-friendly Kaban interface
- Mitsubishi PLC control system
- Cutting fluid spray system
Design
- Mechanical structure capable of processing aluminum profiles at high speed and high quality
- Enables automatic drilling of espagnolette holes, locks, barrel slots, handle holes, and water drainage channels in aluminum profiles.
- Pneumatic clamping on the front and top surfaces for profile fixing
- Enables automatic drilling of espagnolette holes, locks, barrel slots, handle holes, and water drainage channels in aluminum profiles.
- Pneumatic clamping on the front and top surfaces for profile fixing

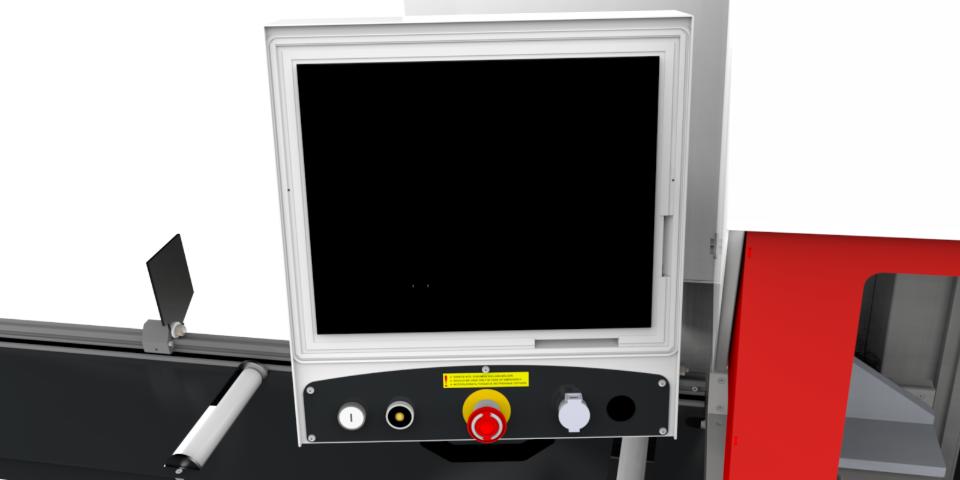

Control Panel
- 17" screen
- Windows-based, user-friendly Kaban interface with an easily adjustable parametric structure
- Compatibility with 3rd-party software
- Mitsubishi PLC control system
- Windows-based, user-friendly Kaban interface with an easily adjustable parametric structure
- Compatibility with 3rd-party software
- Mitsubishi PLC control system

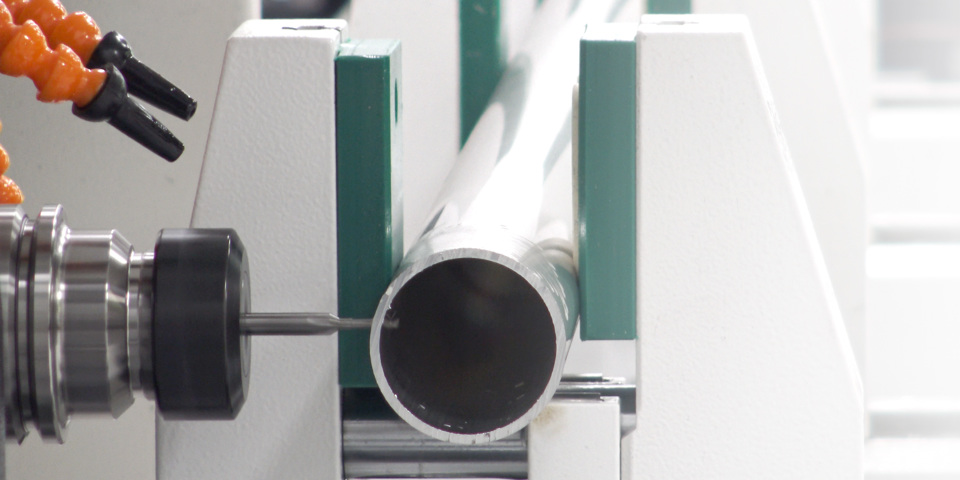

Cutter
- 3-axis servo-controlled machining system
- One-to-one milling operations tailored to the programmed model
- High precision with fully automatic axis control
- Milling and drilling operations
- Cutting fluid spray system
- One-to-one milling operations tailored to the programmed model
- High precision with fully automatic axis control
- Milling and drilling operations
- Cutting fluid spray system
Safety
- Ability to continue from where it left off in case of power failure with the UPS system
- Auto-recovery function that sends the spindle to the safe zone
- Auto-recovery function that sends the spindle to the safe zone
Technical Support
- Periodic maintenance reminder function
- Service support with remote connection
- Service support with remote connection
|
Description
|
|||||||
| Machine Features | Processable Profile Length | Minimum | 500 | mm | |||
| Processable Profile Length | Maximum | 3000 | mm | ||||
| Machinable Profile Section | Minimum | 40 x 40 | mm | ||||
| Machinable Profile Section | Maximum | 200 x 200 | mm | ||||
| Milling | Engine Power | 1,5 | kW | ||||
| Milling | Maximum Diameter | 10 | mm | ||||
| Milling | Transfer | 12000 | d/d | ||||
| Milling | Processing Angle | 315 | ° | ||||
| Milling | Maximum Size | 55 | mm | ||||
| Technicial Specifications | Air | Pressure | 6-8 | bar | |||
| Air | Total Air Consumption | 96 | l/min | ||||
| Feed | Voltage | 400 | V | ||||
| Feed | Power | 5 | kW | ||||
| Weight | Net | 950 | kg | ||||
| Weight | Gross | 1050 | kg | ||||
| Sound | Level | 96 | dB | ||||
| Machine Dimensions | Length | 4025 | mm | ||||
| Machine Dimensions | Width | 1900 | mm | ||||
| Machine Dimensions | Height | 1870 | mm | ||||
