- Mechanical structure that can process aluminum and steel profiles at high speed and high quality
- Stress relieved cast and welded parts to ensure consistent high speed accuracy
- Axis speeds averaging 100 m/min.
- Ability to perform milling, notching, drilling, threading, countersinking, cutting, etc.
- Machining length 15000 mm at single station operation
- Machining length 7300 mm x 2 at double station operation
- Machinable profile section size 450 x 300 mm
- Coolant spray system

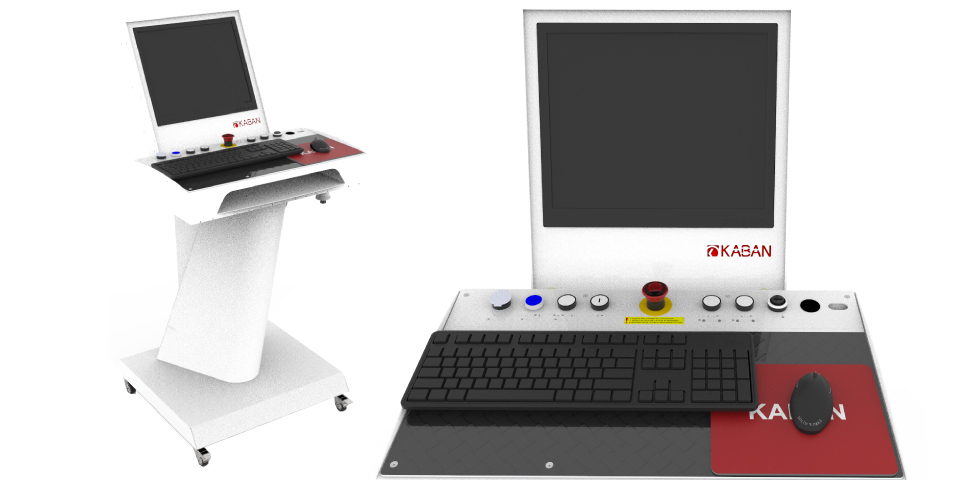

- Versatile adjustable, ergonomic kiosk
- 19'' screen
- User-friendly Kaban interface with Windows-based, easily adjustable parametric structure
- Compatibility with .NCX extension software
- High performance 4+1 axis Mitsubishi CNC control unit
- Optical communication and 0.001 mm command increment
- Communication via Ethernet
- Working with G-Code
- Data transfer via USB and COM Port

- Positioning with 0.01⁰ interval with torque-enhanced servo control with Simutomo..

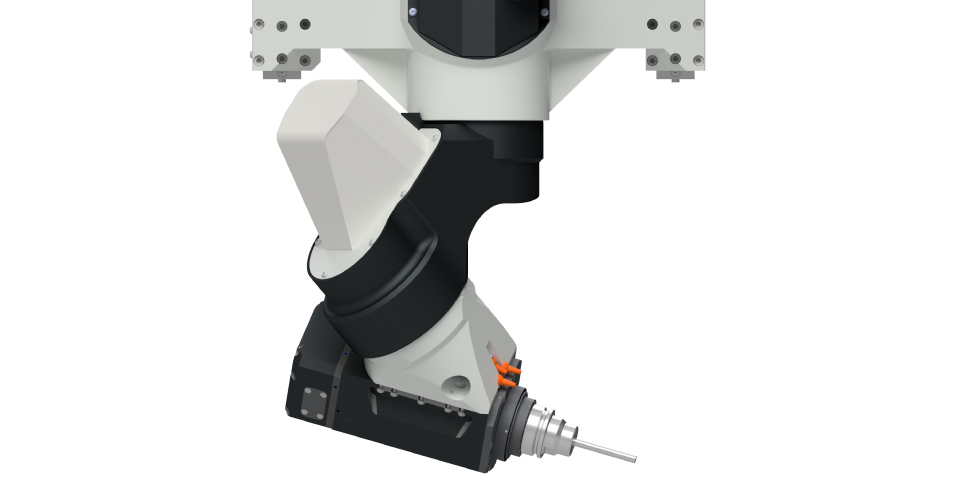

- HITECO brand liquid cooled 8.5 kW max. 24.000 rpm spindle with thermostat sensor.
- Tool cooling system with oil-air mixture spray speed adjustment, liquid level sensor.
- HSK tool holder and tool holder cleaning system.
- Tool change safety protocols written to reduce operator errors as much as possible.

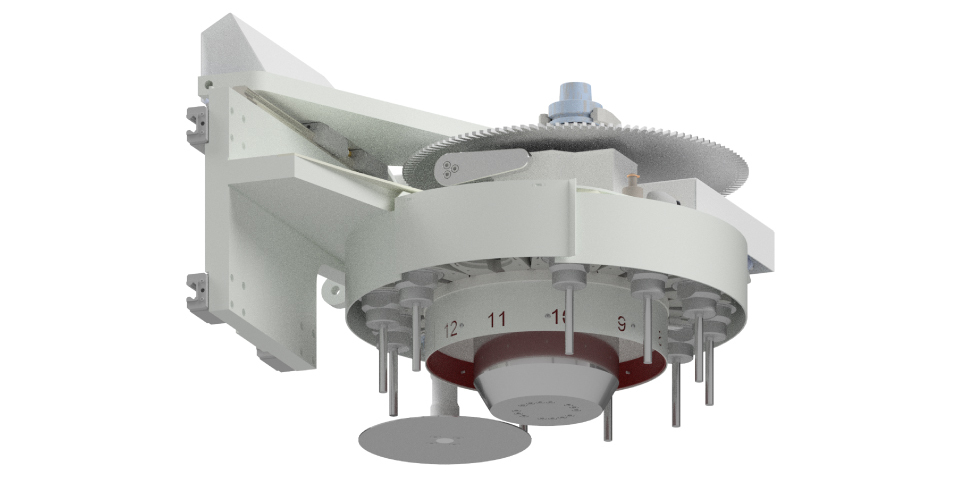

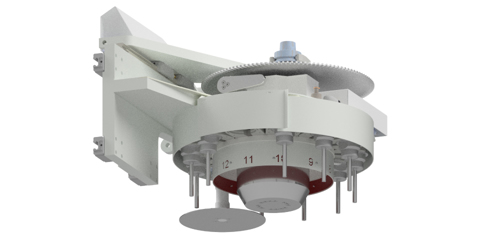

- Magazine with a capacity of 12 tool sets.
- Tool change feature in maximum 4 seconds.
- It saves time by changing the tool while processing the part.

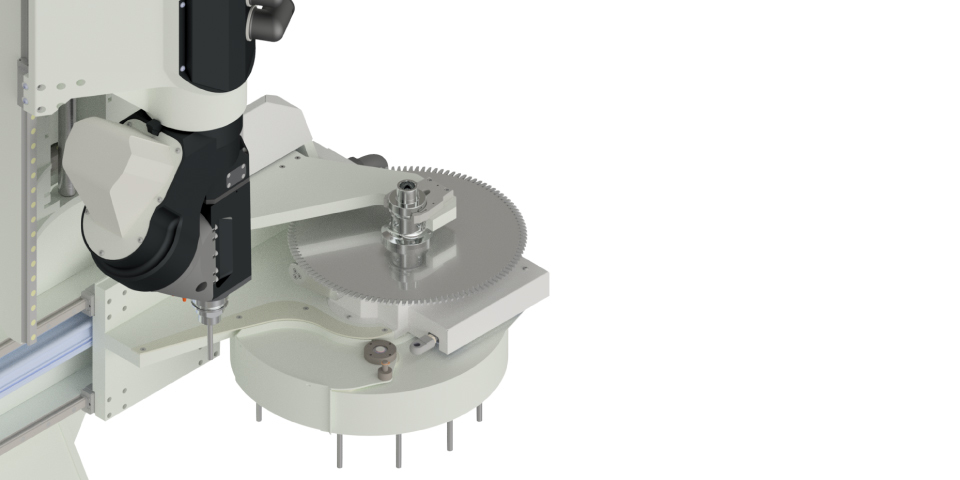

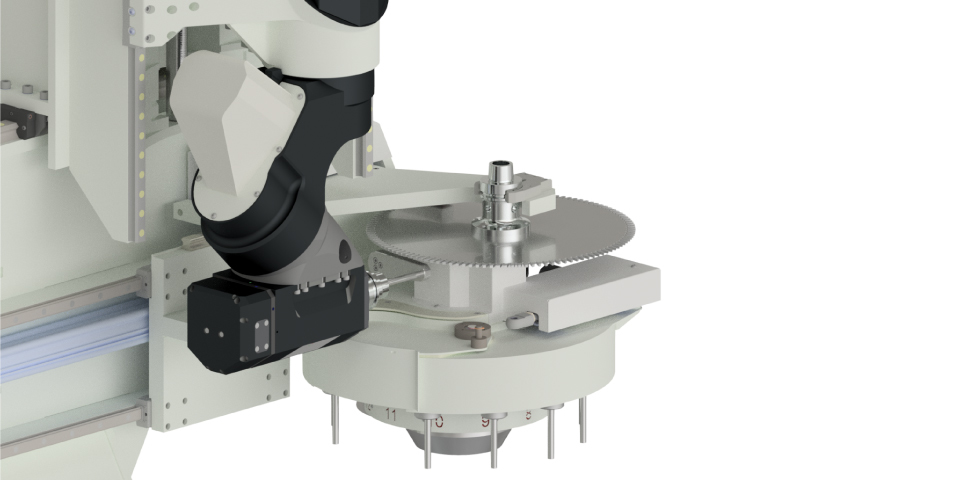

- Ø200mm saw can be mounted.

- Has a magazine for the saw.
- Tool change feature in maximum 4 seconds.
- Easy design for saw changing.
- Saws up to a maximum of Ø400mm can be mounted.

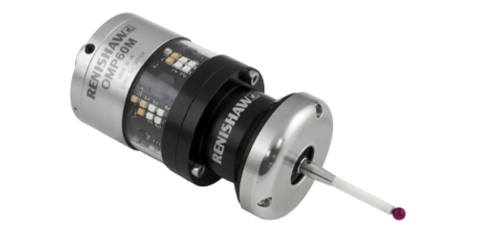

- Tool length measurement with 0.001 mm precision

- Foldable support system that takes up minimal space

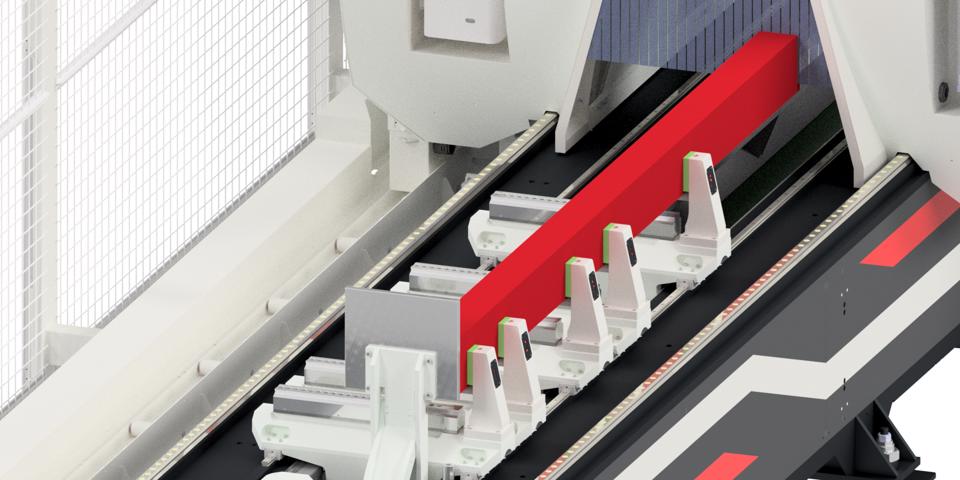

- Automatic profile support system on both sides

- Profile loading is very easy as the clamp fixings are located on the front side.

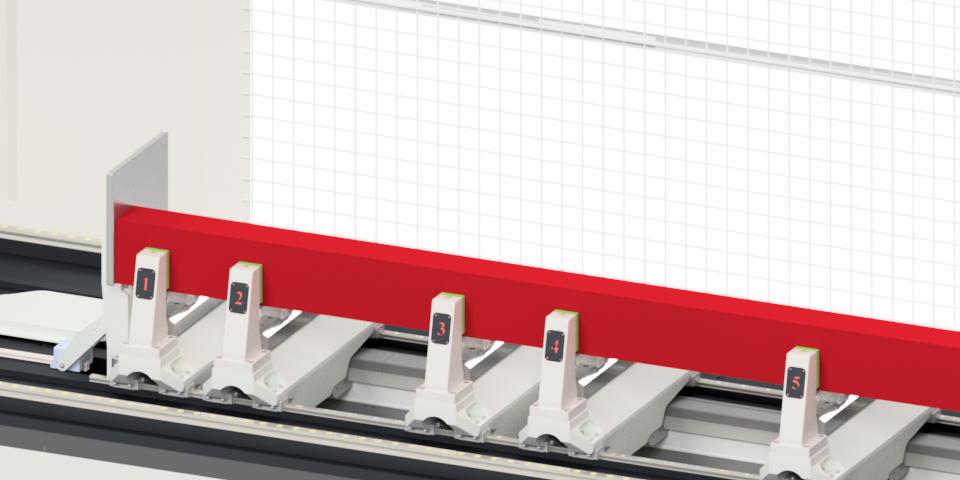

- 10 clamps as standard. Optionally, the number of clamps can be increased.
- Since the surfaces on which the profile sits are roller system, it provides profile sliding comfort on the clamp surface.
- According to the recipes on the workpiece, the clamps take servo-controlled automatic position.
- Easy part reset with double-sided profile stop system.
- Provides profile processing in long lengths. With a Ø400 mm saw, it can cut the ends of the profiles.
- Thanks to the pressure regulator, the clamp tightness can be adjusted according to the profile thickness.
- Parts smaller than 300mm can be held and cut with a single clamp.
- Thanks to the profile transport system with clamp, the saw can easily enter between the profiles.

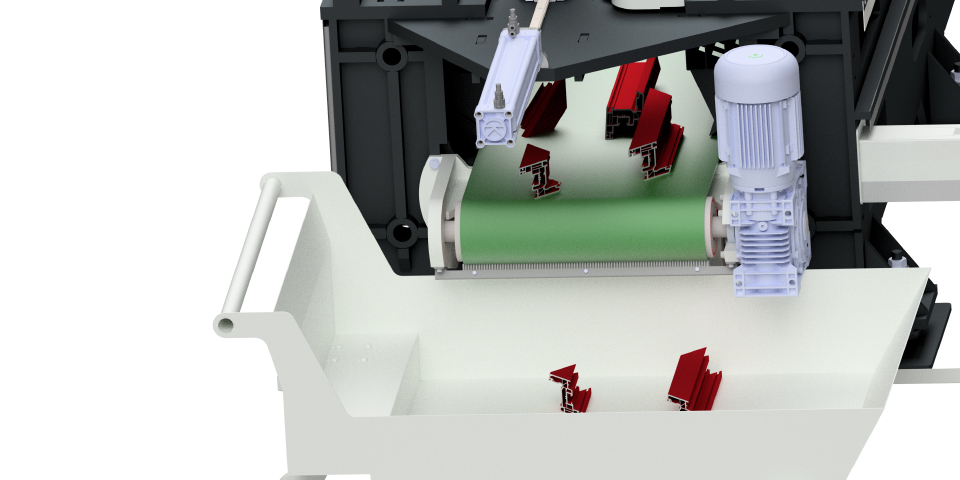

- Chip conveyor for waste parts

- Ability to continue from where it left off in case of power failure with the UPS system
- Auto-recovery function that sends the spindle to the safe zone
- Operational safety with protective fences and safety barriers
- Security labels

- Periodic maintenance reminder function
- Service support with remote connection

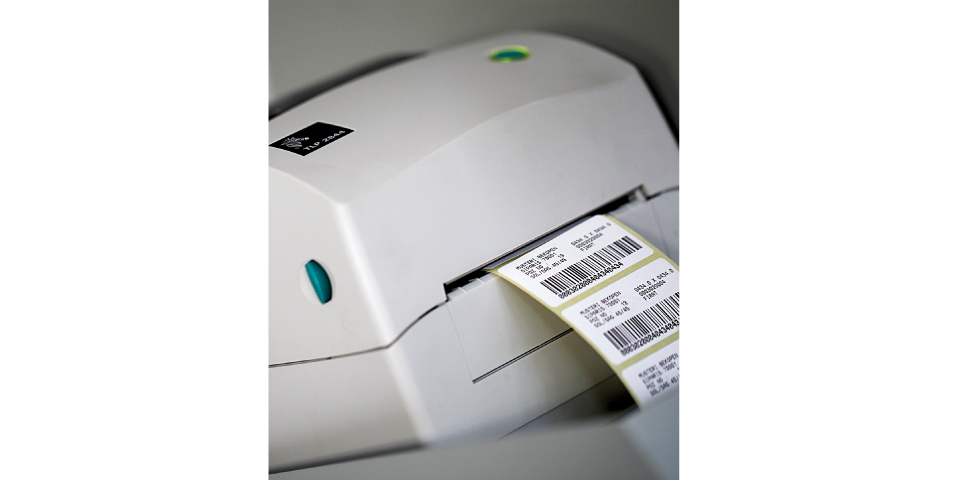

- Barcode printer

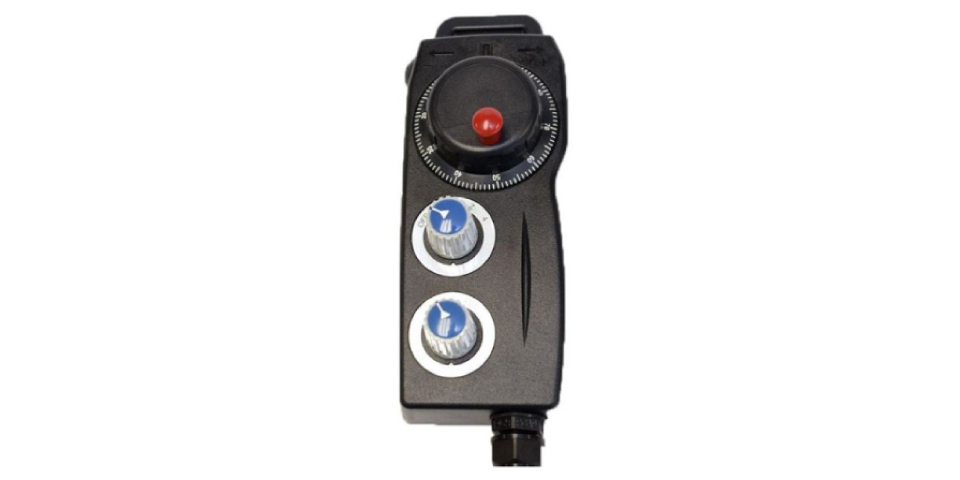

- Moving axes manually

- Dimension control of machined or to be machined parts

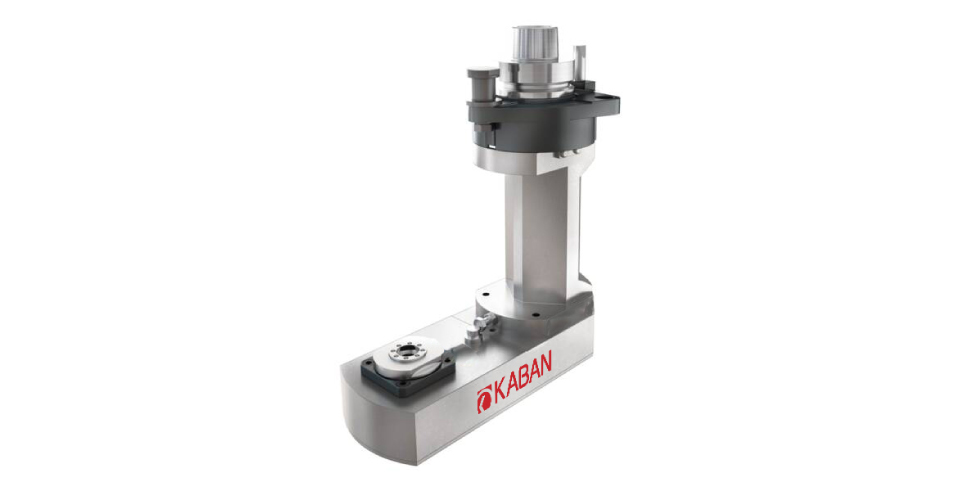

- Angled tool holder that can machine the bottom surface of the part
