HB 2010

Full Automatic Double Head Aluminum Cutting Machine

- Robust mechanical structure suitable for high speed
- 2 pieces Ø 550 mm saw
- Pneumatic clamps on the front and upper surfaces to fix the profile

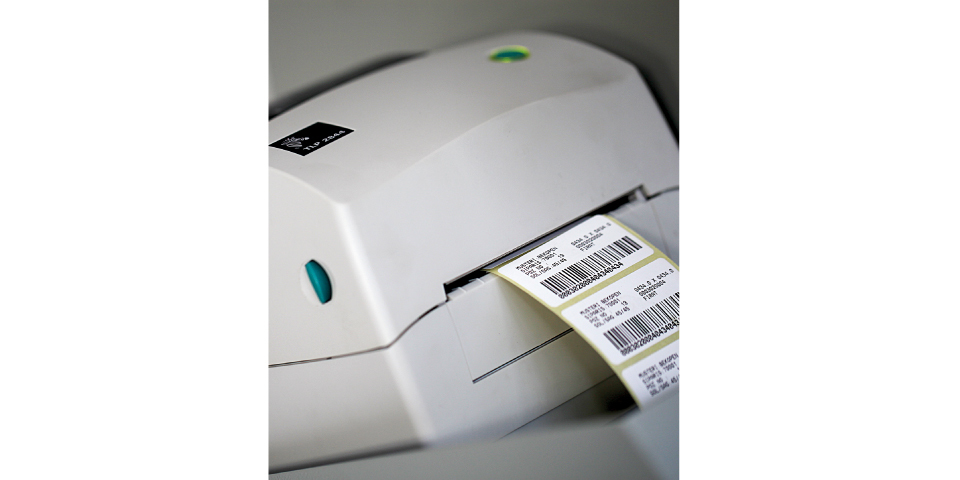

- Barcode Printer
- Safety covers
- 7'' touch screen
- Compatibility with 3rd party software
- Mitsubishi PLC control system
- Automatic slicing system
- Coolant spray system

Cutting Diagram

Layout

Design

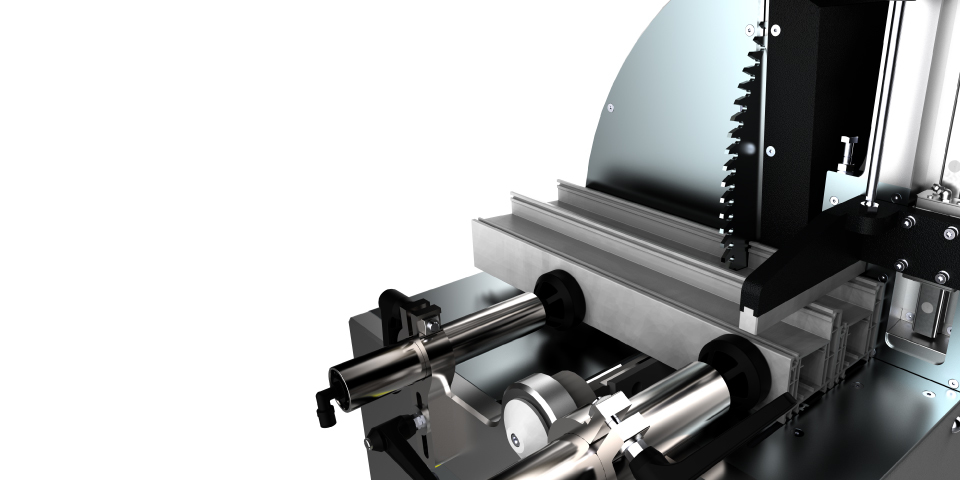

- Mechanical structure that can cut aluminum profiles at angles between 22,5° and 90° with high speed and quality
- Stress relieved cast and welded parts to ensure consistent high speed accuracy
- Pneumatic clamping on the front and upper surfaces to fix the profile
- Profile height measuring system
- Right feeding table
- Safety covers

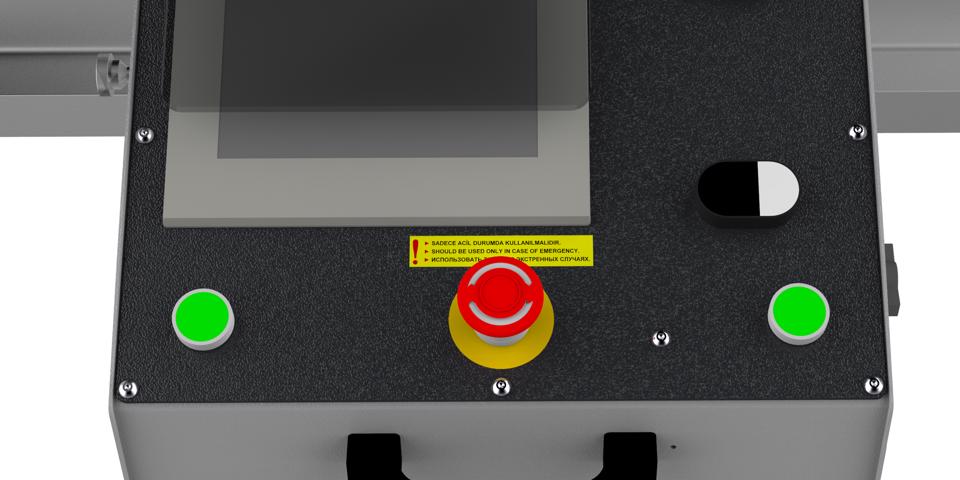

Control Panel

- 7'' touch screen

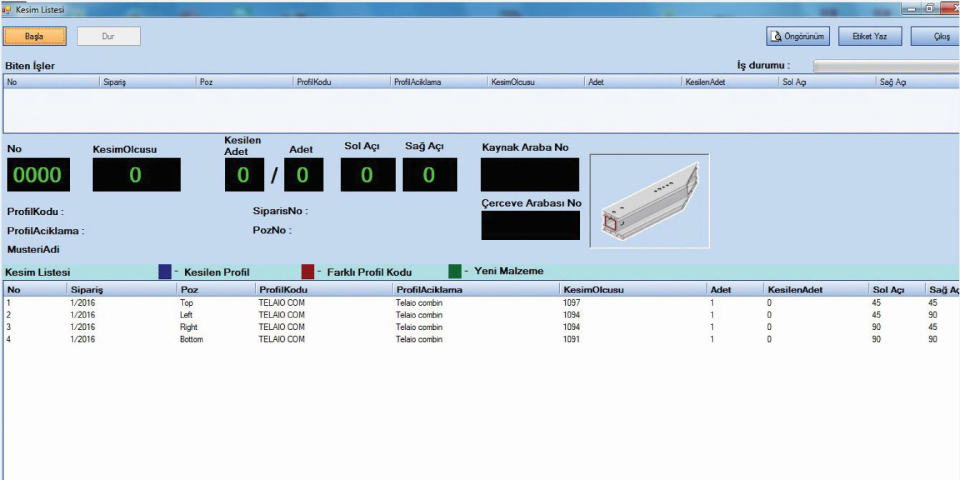

- User-friendly Kaban interface with Windows-based, easily adjustable parametric structure
- Compatibility with 3rd party software
- Mitsubishi PLC control system
- Automatic positioning
- Automatic angled slicing system
- Data transfer via memory card
- Memorizes 1250 different cutting sizes
- Ethernet connection

Saw

- 45° / 90° automatic, intermediate angles manual adjustment
- 2 pieces Ø 550 mm saw
- Hydropneumatic saw feed speed
- Coolant spray system

Safety

- Automatic protection cover
- Double hand safety system
- Security labels

Technical Support

- Periodic maintenance reminder function
- Service support with remote connection

Description
Moving Head	X Axis	Motor power	0,37	kW
	X Axis	Axis Speed	22	m/min
Cut Length	X Axis	Max at 90°	4000	mm
	X Axis	Minimum at 90°	350	mm
Fix and Moving Head	Saw	Motor power	2,2	kW
	Saw	Diameter	550	mm
Technicial Specifications	Air	Pressure	6 - 8	bar
	Air	Total Air Consumption	125	l/min
	Feed	Voltage	400	V
	Feed	Power	4,8	kW
	Weight	Net	1190	kg
	Weight	Gross	1500	kg
	Sound	Level	96	dB
	Machine Dimensions	Height	1620	mm
	Machine Dimensions	Width	1746	mm
	Machine Dimensions	Length	5778	mm
