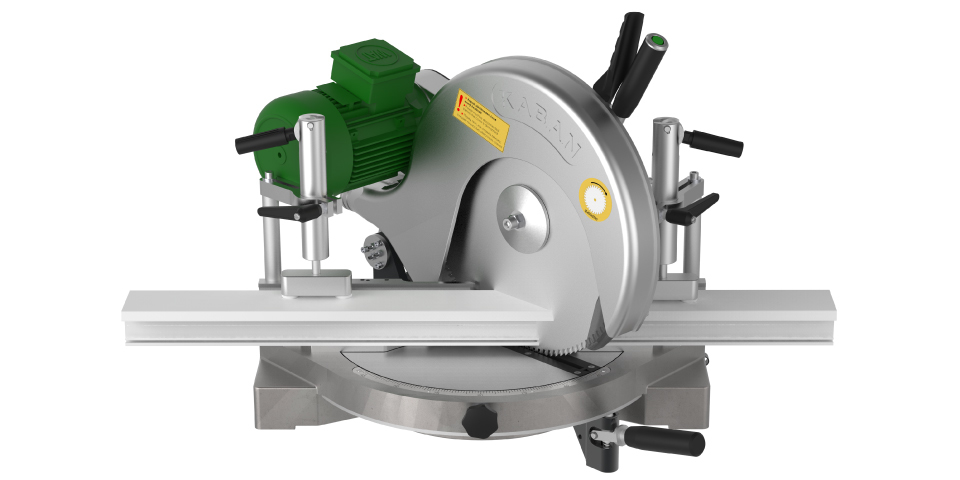

- Robust mechanical structure suitable for high speed
- Ø 400 mm saw
- Coolant spray system
- Two-stage security system

Design

- Mechanical structure that can cut aluminum profiles at high speed and quality
- Alignment between 5° and at 45° / 90° / 45° with the fixing pin
- Manual alignment via ruler at intermediate angles
- Profile fixing pistons
- Time saving thanks to the rotary table
- Profile support table with manual measuring system
- Left profile support table

Saw

- Ø 400 mm saw
- Coolant spray system

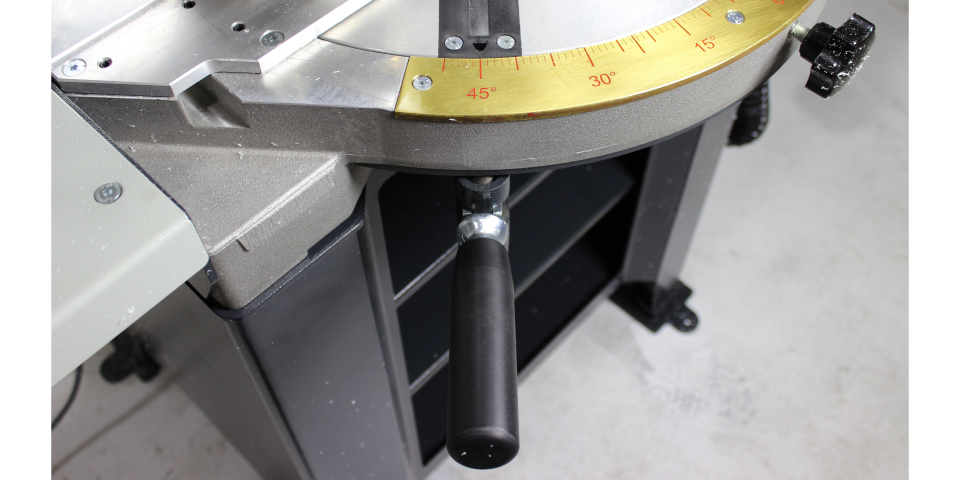

Manual Angle Adjustment

- Practically positioned at 5° intervals.
- Positioned by fixing at intermediate angles.
- Cuts between +45°, -45°.

Safety

- Protection cover
- Two-stage safety system
- Security labels
Description
Saw Motor power 1,1 kW
Diameter 400 mm
Cutting Angle 45 - 135 °
Feed Voltage 220/230/400 V
Power 1,1 kW
Weight Net 132 kg
Gross 150 kg
Sound Level 96 dB
Machine Dimensions Length 6645 mm
Width 868 mm
Height 1575 mm

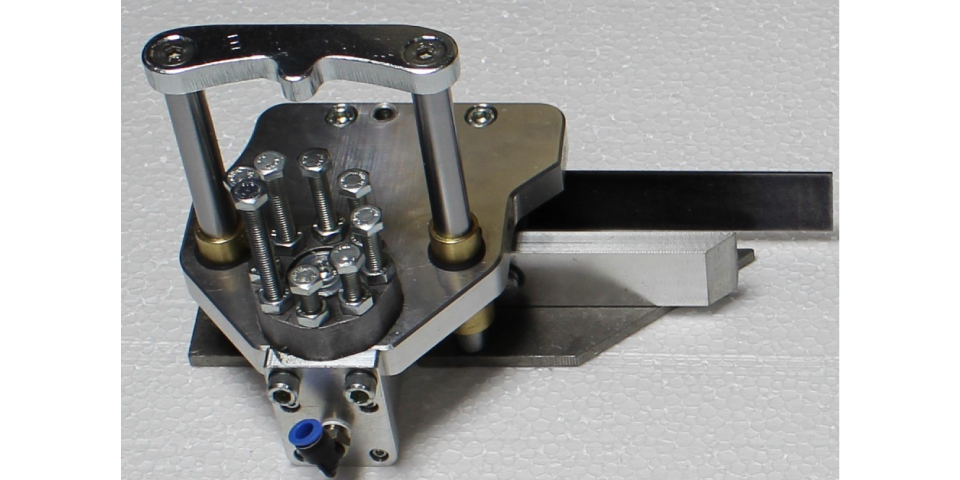

L200 Glazing bead apparatus

- Cutting of glazing beads.
