CD 3051

CNC 2 Axis Corner Cleaning Machine

- Mechanical structure that can clean the corners of the frames at high speed and high quality
- 7'' touch screen
- User-friendly Kaban interface with easily adjustable parametric structure
- Mitsubishi PLC control system
- Data transfer via memory card
- Memorizes 250 profile information
- Automatic profile recognition feature
- Cleaning the welding chips on the lower and upper surfaces with stripping blades
- Cleaning of chips inside including sill frames
- Cleaning the chips outside with a saw
- Cleaning of laminated profiles
- Automatic lubrication system
- Manual feeding possibility

Layout

Design

- Mechanical structure that can clean PVC profiles at high speed and with high quality
- Stress relieved cast and welded parts to ensure consistent high speed accuracy
- Automatic lubrication system
- Possibility of manual feeding

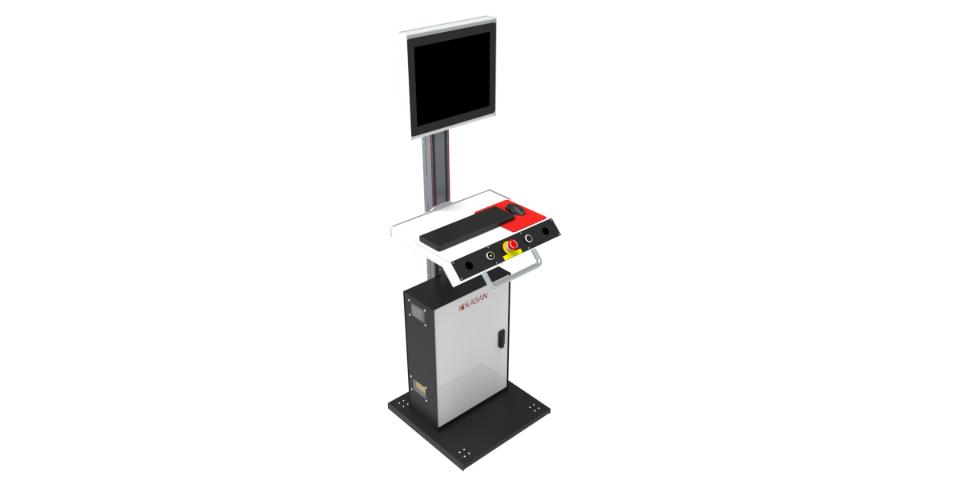

Control Panel

- 7'' touch screen
- User-friendly Kaban interface with easily adjustable parametric structure
- Mitsubishi PLC control system
- Software that allows creating recipes for different profiles
- Data transfer via memory card
- Memorizes 250 profile information
- Automatic profile recognition feature
- Ethernet connection

Corner Cleaning

- Cleaning the welding chips on the lower and upper surfaces with stripping blades
- Cleaning of chips inside including sill frames
- Cleaning the chips outside with a saw
- Cleaning of laminated profiles

Stripping Blade

- Stripping blades clean the chips on the lower and upper surfaces of the profile caused by the welding process.

Safety

- Security labels

Technical Support

- Periodic maintenance reminder function
- Service support with remote connection

Description
Machine Features	Profile	Height	220	mm
	Profile	Width	130	mm
	Frame	Minimum	340 x 340	mm
	X Axis	Motor power	0,75	kW
	Z Axis	Motor power	0,75	kW
	Saw	Motor power	0,55	kW
	Saw	Rotation Speed	6000	rpm
	Saw	Diameter	230	mm
Technicial Specifications	Air	Pressure	6-8	bar
	Air	Total Air Consumption	45	l/min
	Feed	Voltage	230	V
	Feed	Power	3,15	kW
	Weight	Net	900	kg
	Weight	Gross	1035	kg
	Sound	Level	93	dB
	Machine Dimensions	Length	2510	mm
	Machine Dimensions	Width	3176	mm
	Machine Dimensions	Height	1999	mm
