CD 3060

3 Axis CNC Lame Sash Corner Cleaning Machine

- Cleaning the Lame Sash With 3 Axes
- Corner Cleaning of PVC Frames
- High-Speed, Maximum-Quality Operation

Design

- Robust mechanical design allows you to process PVC profiles with maximum quality for many years, at high speed.
- It is designed to clean PVC frame corners made of 90o angle.
- Cleaning of a corner in min. 9 sec.- max.18 sec. according to profile type.

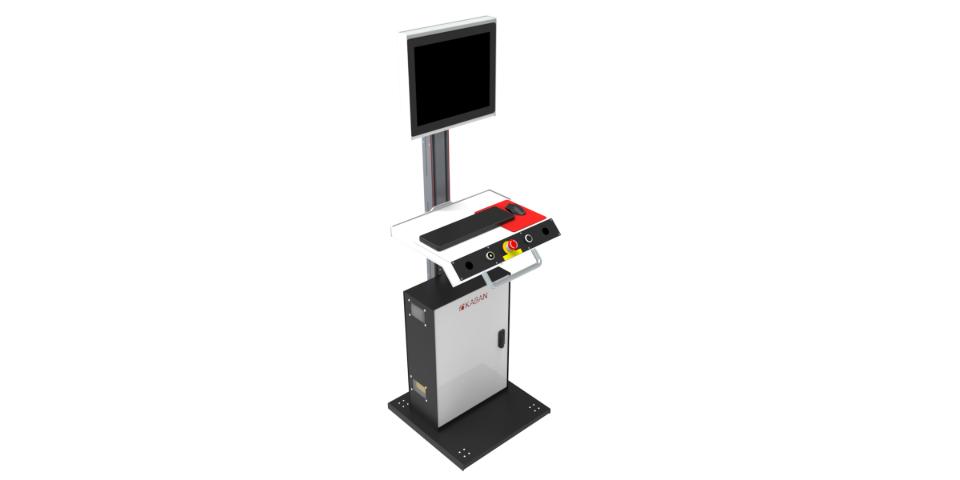

Control Panel

- Mitsubishi PLC, control equipment and easy-to-use portable LCD display
- Software which allows to create receipts at laminated-unlaminated, with gasket-without gasket categories.
- Practical and user friendly parameter settings.
- Automatic profile defination feature thanks to measuring and control systems

Corner Cleaning

- Cleans inner parts of sill frames.
- Lame Sash Cleaning with 3.Axis

Stripping Blade

- Scraping blades clean the burrs on the lower and upper surfaces of the profile caused by the welding process.

Safety

- Security labels

Technical Support

- Periodic maintenance reminder function
- Service support with remote connection

Description
Machine Features	Profile	Height	220	mm
	Profile	Width	130	mm
	Frame	Minimum	340 x 340	mm
	X Axis	Motor power	0,75	kW
	Y Axis	Motor power	0,4	kW
	Z Axis	Motor power	0,75	kW
	Saw	Motor power	1,5	kW
	Saw	Rotation Speed	12000	rpm
	Saw	Diameter	250	mm
Machine Dimensions	Air	Pressure	6-8	bar
	Air	Total Air Consumption	45	l/min
	Weight	Voltage	230	V
	Weight	Power	4,5	kW
	Net Machine Weight	Net	935	kg
	Gross Weight	Gross	1060	kg
	Sound	Level	96	dB
	Machine Dimensions	Length	2510	mm
	Machine Dimensions	Width	3176	mm
	Machine Dimensions	Height	1999	mm
