- End milling of aluminum profiles at 45° / 90° angle ranges
- Easy blade group changing system
- Easy angle adjustment with mechanical stops
- Support system that can be adjusted according to four different profiles
- Possibility of manual operation
- Cutter storage shelf
Design

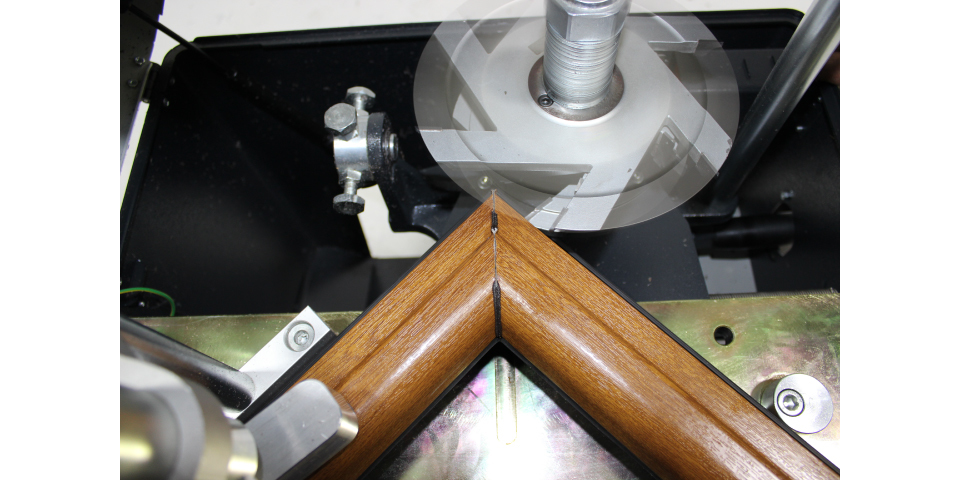

- End milling of aluminum profiles at 45° / 90° angle ranges
- Easy blade group changing system
- Easy angle adjustment with mechanical stops
- Support system that can be adjusted according to four different profiles
- Possibility of manual operation
- Cutter storage shelf

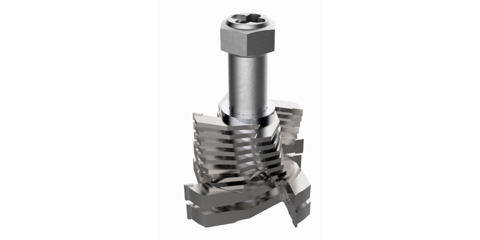

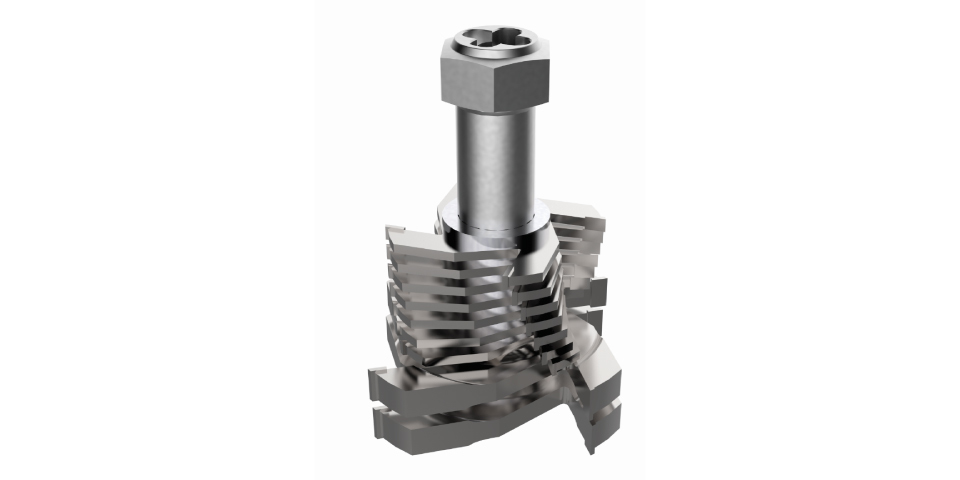

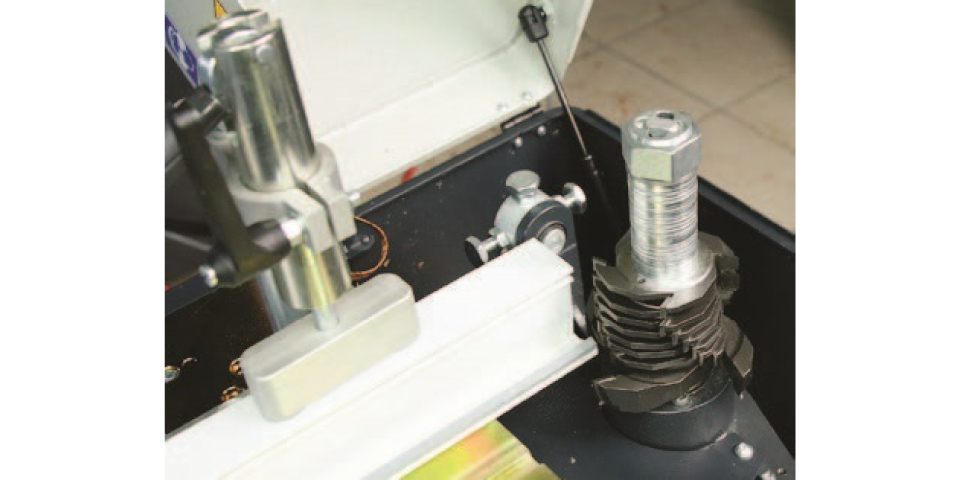

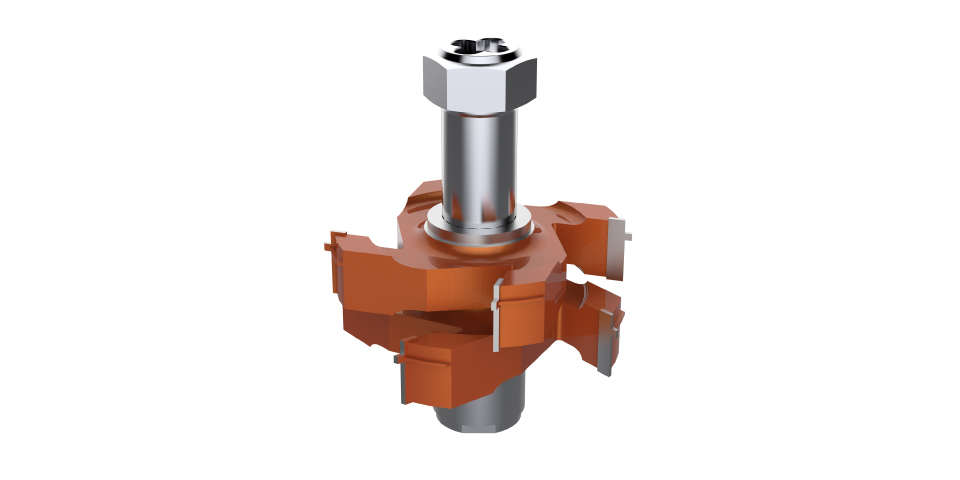

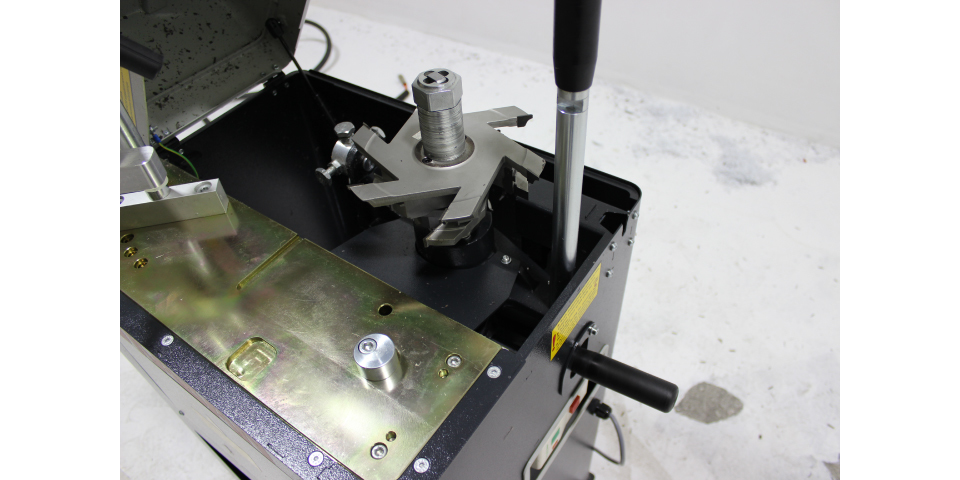

Blade Changing System
|
Description
|
|||||||
| Machine Features | Machinable Profile Size | Height | 120 | mm | |||
| Machinable Profile Size | Width | 130 | mm | ||||
| Milling | Motor power | 1,5 | kW | ||||
| Milling | Max Rotation Speed | 2800 | rpm | ||||
| Milling | Blade Diameter | 162 / 30 | mm | ||||
| Milling | Blade Diameter | 162 / 32 | mm | ||||
| Technicial Specifications | Air | Pressure | 6-8 | bar | |||
| Air | Total Air Consumption | 10 | l/min | ||||
| Feed | Voltage | 400 | V | ||||
| Feed | Power | 1,5 | kW | ||||
| Weight | Net | 102 | kg | ||||
| Weight | Gross | 113 | kg | ||||
| Machine Dimensions | Length | 755 | mm | ||||
| Machine Dimensions | Width | 511 | mm | ||||
| Machine Dimensions | Height | 1156 | mm | ||||
