- Robust mechanical structure that can process aluminum profiles with high quality
- End milling of aluminum profiles at angles of -22.5° / +45°
- Easy blade group changing system
- Easy angle adjustment with mechanical stops
- Support system that can be adjusted according to four different profiles
- Adjustment of cutting speed with hydro-pneumatic system
- Cutter storage shelf
- Coolant spray system
- End milling of aluminum profiles at angles of -22.5° / +45°
- Easy blade group changing system
- Easy angle adjustment with mechanical stops
- Support system that can be adjusted according to four different profiles
- Adjustment of cutting speed with hydro-pneumatic system
- Cutter storage shelf
- Coolant spray system
Design
- Robust mechanical structure that can process aluminum profiles with high quality
- End milling of aluminum profiles at angles of -22.5° / +45°
- Easy blade group changing system

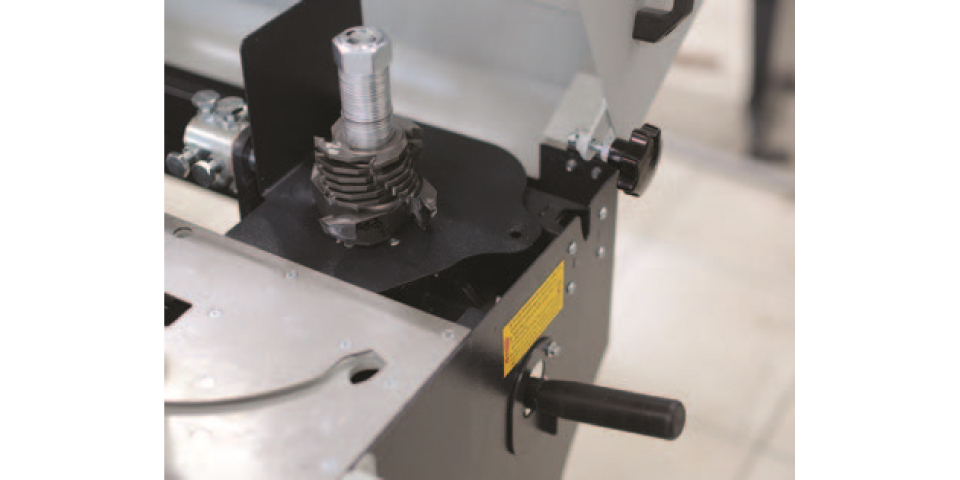

- Easy angle adjustment with mechanical stops
- Support system that can be adjusted according to four different profiles
- Adjustment of cutting speed with hydro-pneumatic system
- Cutter storage shelf
- Coolant spray system
- End milling of aluminum profiles at angles of -22.5° / +45°
- Easy blade group changing system
- Easy angle adjustment with mechanical stops
- Support system that can be adjusted according to four different profiles
- Adjustment of cutting speed with hydro-pneumatic system
- Cutter storage shelf
- Coolant spray system
Practice Angles

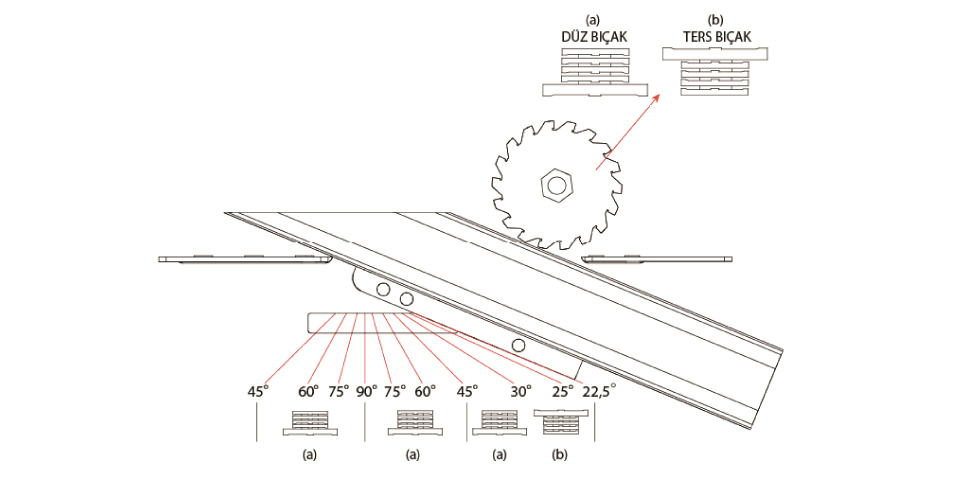

- End Milling Angles for Straight Blade(a) and Reverse Blade(b).
Straight Lapping

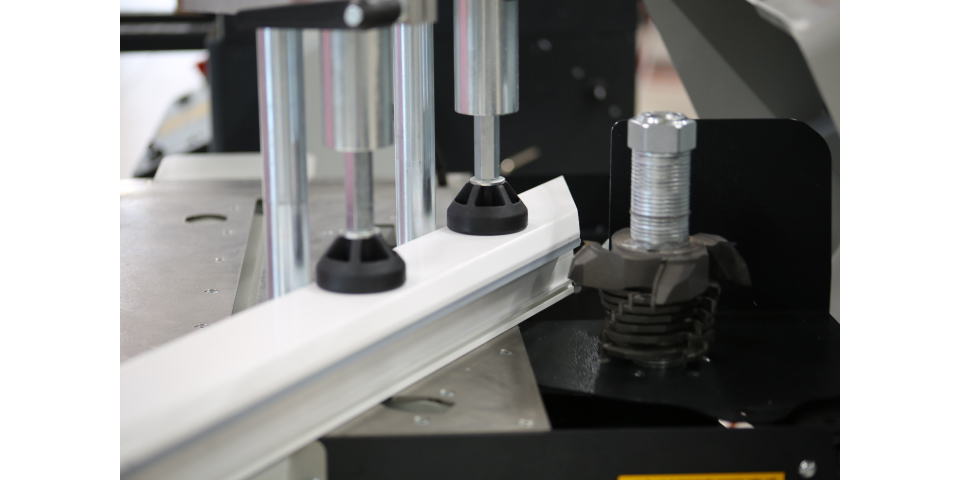

- End milling with the use of straight cutter in the angle range of (-22.5°) (-45°).
Reverse Exercise

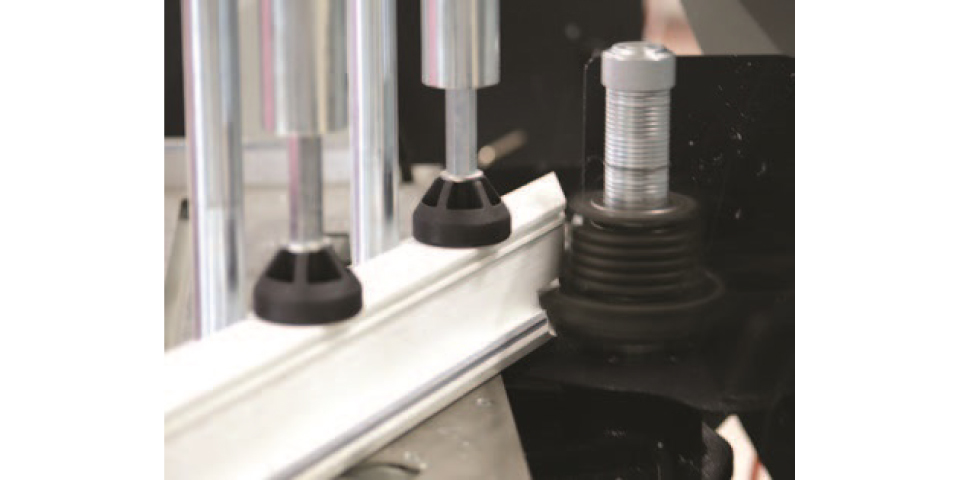

- End milling with the use of reverse cutter in the angle range of (-22.5°) (-45°).

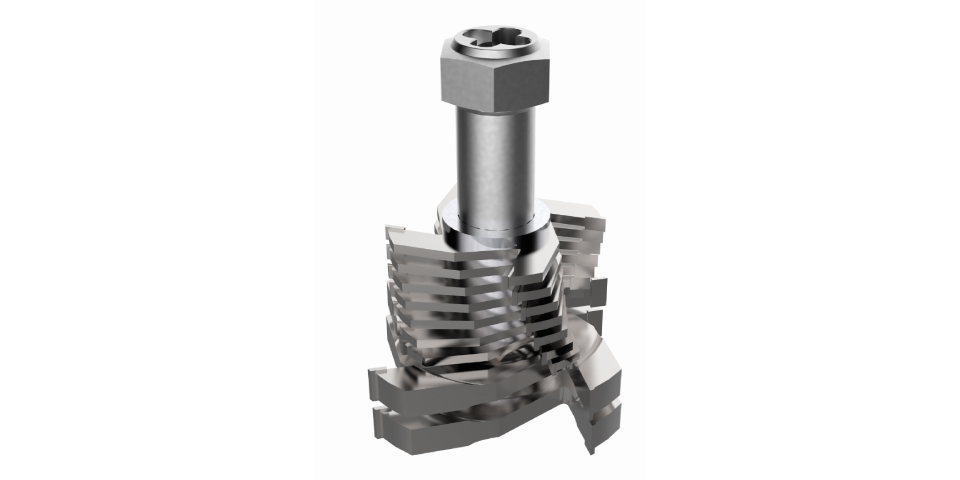

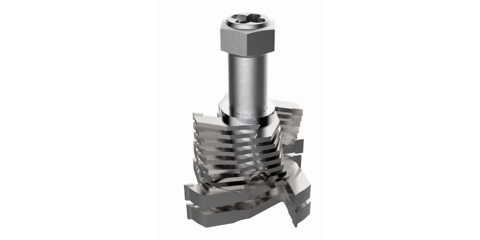

Blade Changing System
- Ease of operation with practical blade change system when working in more than one series
Safety
- Safe operation with safety cover
- Security labels
- Security labels
|
Description
|
|||||||
| Machine Features | Machinable Profile Size | Height | 130 | mm | |||
| Machinable Profile Size | Width | 120 | mm | ||||
| Milling | Motor power | 1,5 | kW | ||||
| Milling | Max Rotation Speed | 2800 | rpm | ||||
| Milling | Blade Diameter | 30 / 180 | mm | ||||
| Technicial Specifications | Air | Pressure | 6-8 | bar | |||
| Air | Total Air Consumption | 87 | l/min | ||||
| Feed | Voltage | 400 | V | ||||
| Feed | Power | 1,5 | kW | ||||
| Weight | Net | 143 | kg | ||||
| Weight | Gross | 165 | kg | ||||
| Sound | Level | 96 | dB | ||||
| Machine Dimensions | Length | 1206 | mm | ||||
| Machine Dimensions | Width | 832 | mm | ||||
| Machine Dimensions | Height | 1244 | mm | ||||
