ZC 4030

3 Axis Aluminum Machining Center

- Robust mechanical structure suitable for high speed
- Axis speeds with an average of 95 m/d
- Profiling length 4175 mm
- Machinable profile section size 300 x 300 mm
- Number of clamps 6 pieces
- Spindle motor 8.5 kW 24,000 rpm
- The number of magazine sets is 8
- Ø 200 mm saw
- Mitsubishi CNC control unit
- Vices positioned by the X-axis
- Automatic tool recovery in case of power failure

Layout

Machinable Part Section

A-Axis

Design

- Mechanical structure that can process aluminum and steel profiles at high speed and high quality
- Stress relieved cast and welded parts to ensure consistent high speed accuracy
- Axis speeds with an average of 95 m/min.

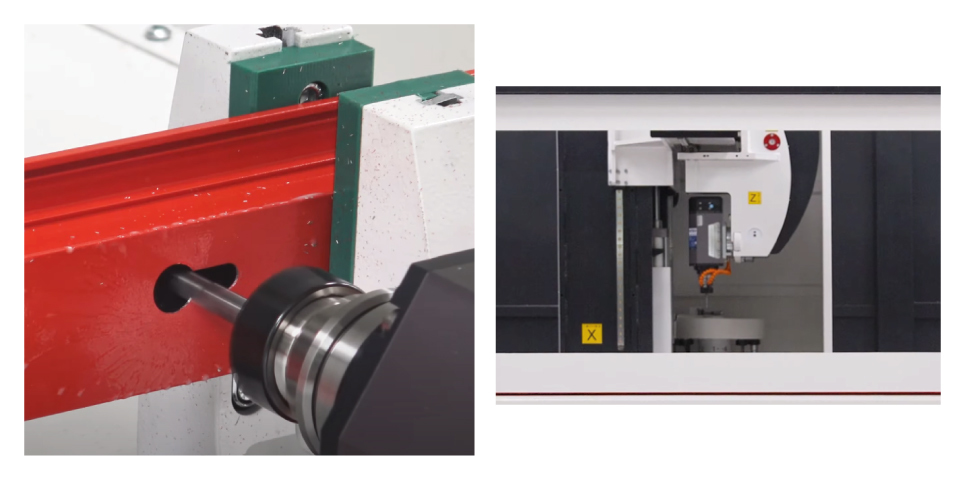

- Ability to perform milling, notching, drilling, threading, countersinking, cutting, etc.
- Profile machining length 4175 mm
- Machinable profile section size 300 x 300 mm
- Automatic lubrication system
- Coolant spray system

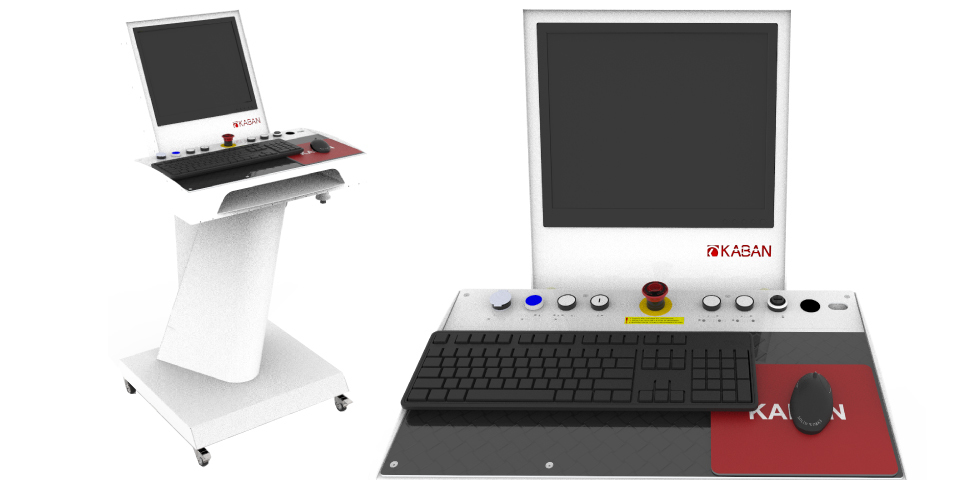

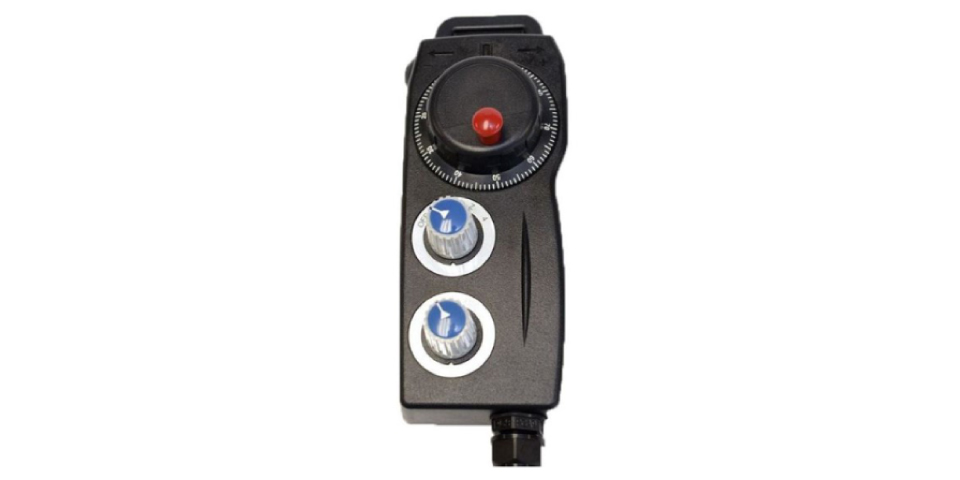

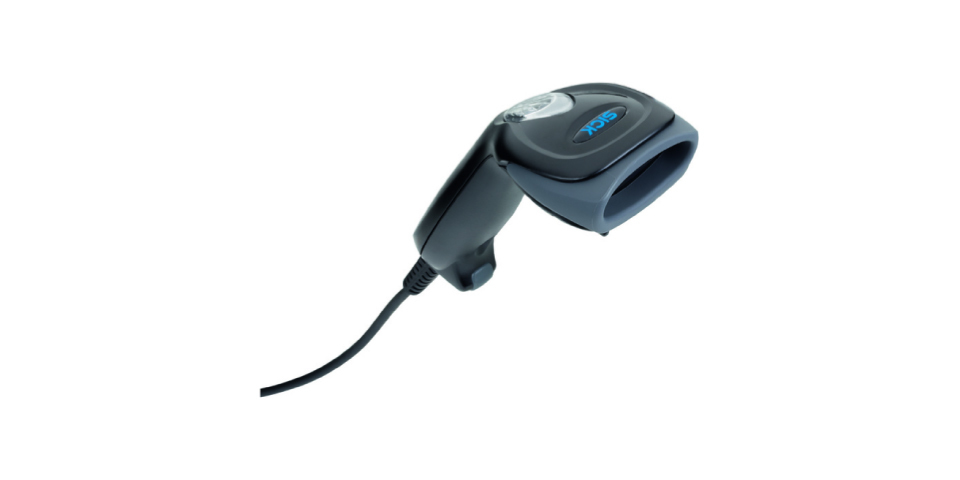

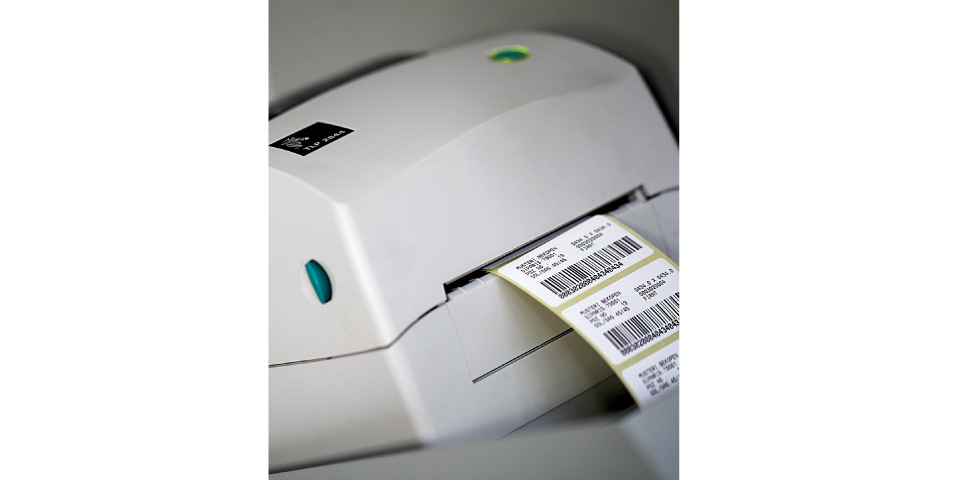

Control Panel

- Versatile adjustable, ergonomic kiosk
- 19'' screen
- User-friendly Kaban interface with Windows-based, easily adjustable parametric structure
- Compatibility with .NCX extension software
- High performance 3 axis Mitsubishi CNC control unit
- Optical communication and command increment
- Communication via Ethernet
- Working with G-Code
- Data transfer via USB and COM Port

Spindle

- 8.5 kW / 24,000 rpm
- HSK F63 tool holder
- Encoder
- Temperature control
- Liquid cooling
- Tool cooling

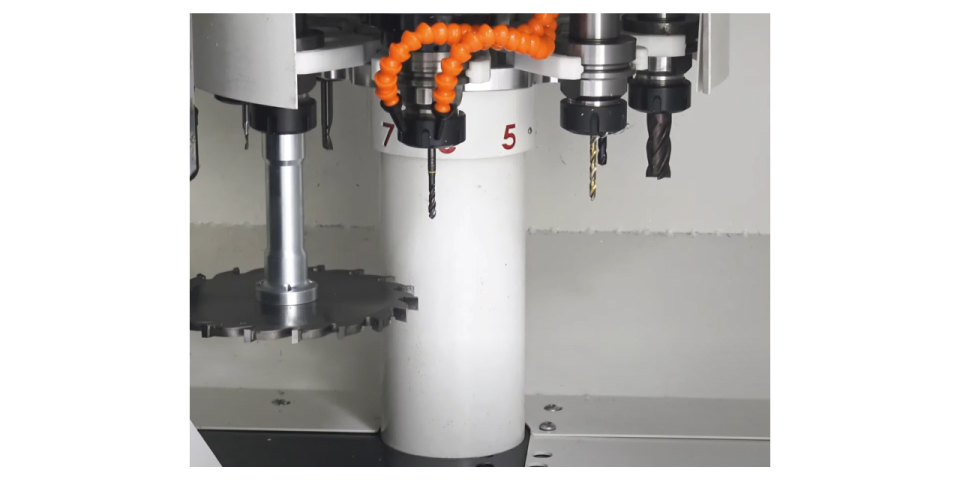

Magazine

- 8 tool holder capacity
- Tool change in up to 8 seconds
- Ø 200 mm saw can be attached

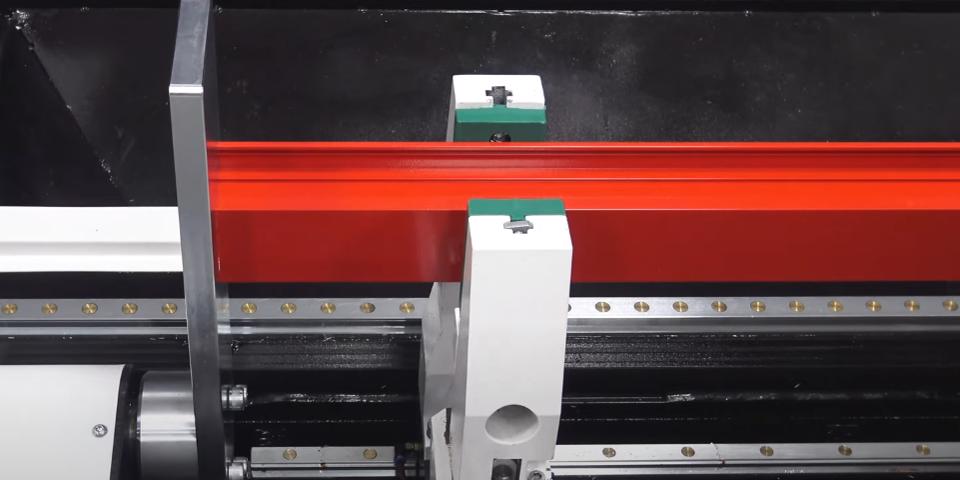

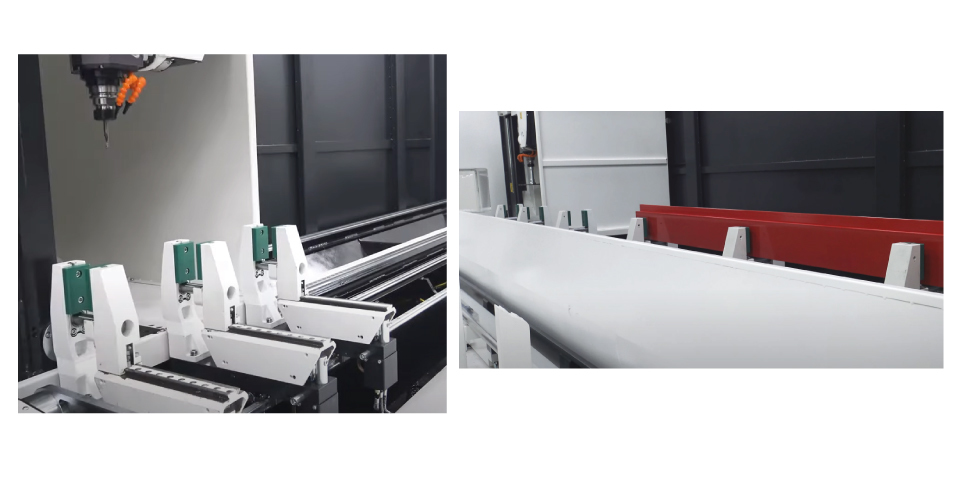

Profile Supports

- Automatic profile support system on both sides
- Suitable for working with long profiles

Vices

- Narrow clamps designed to be protected against external influences
- 6 standard clamps
- Clamps positioned by the X-axis
- Ease of profile sliding on the clamp surface with roller system
- Three different clamping forces according to the profile thanks to the pressure regulator

Safety

- Ability to continue from where it left off in case of power failure with the UPS system
- Auto-recovery function that sends the spindle to the safe zone
- Working safety with cover and safety barriers

Technical Support

- Periodic maintenance reminder function
- Service support with remote connection

Description
Machine Features	X Axis	Motor power	3,5	kW
	X Axis	Axis Speed	135	m/min
	X Axis	Maximum Machining Length	4175	mm
	Y Axis	Motor power	0,75	kW
	Y Axis	Axis Speed	110	m/min
	Y Axis	Max Machining Width	300	mm
	Z Axis	Motor power	0,75	kW
	Z Axis	Axis Speed	45	m/min
	Z Axis	Max Machining Height	300	mm
	Spindle	Motor power	8,5	kW
	Spindle	Max Rotation Speed	24000	rpm
	Magazine	Tool Number	8	Piece
	Tool magazine	Maximum Saw Diameter	200	mm
	Clamp	Number of Clamps	6	Piece
	Feed	Voltage	400	V
Technicial Specifications	Air	Pressure	6-8	bar
	Air	Total Air Consumption	161	l/min
	Feed	Power	19	kW
	Weight	Net	5670	kg
	Weight	Gross	6305	kg
	Machine Dimensions	Length	7896	mm
	Machine Dimensions	Width	3547	mm
	Machine Dimensions	Height	2642	mm
